Coach.
Designed for longer distances, the BYD Coach relies on the same innovative and powerful battery system and fully charges within three hours. Whether your passengers need to travel across regions or countries, they'll get there comfortably in the BYD Coach

Technical specifications.

Dimensions

L/W/H12,900/2,550/3,550 mm
Wheelbase6,850 mm
Turning circle24 m
Floor height1,020 mm
Boarding height360/360
Approach/Departure angle8/8 º
Tyres295/80 R22.5
Interior headroom2,162 mm
Clear door width650/650 mm
Gross Vehicle Weight (G.V.W.)19,000 kg
L/W/H 12,900/2,550/3,550 mm
Wheelbase 6,850 mm
Turning circle 24 m
Floor height 1,020 mm
Boarding height 360/360
Approach/Departure angle 8/8 º
Tyres 295/80 R22.5
Interior headroom 2,162 mm
Clear door width 650/650 mm
Gross Vehicle Weight (G.V.W.) 19,000 kg

Powertrain

Max. motor power180kW x 2
Max. climb gradient20%
Charging powerAC 40 kW x2
Charging time3 hr
Gradeability20%
Maximum speed90 km/h
Average range (city conditions)200 km
Max. motor power 150 x 2 kW
Max. climb gradient 15%
Charging power AC 40 kW x2
Charging time 3 hr
Gradeability 20%
Maximum speed 90 km/h
Average range (city conditions) 200 km

Layout

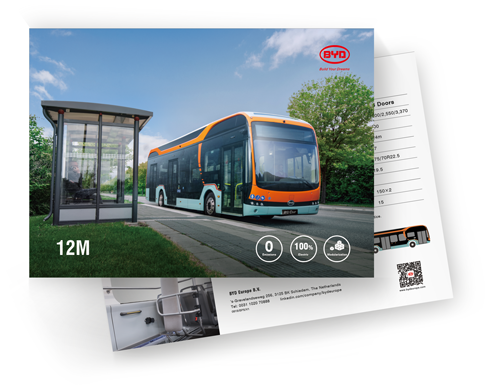

Download
our leaflet.

Fill in your email address and receive the leaflet directly in your mailbox.

E-mail address*
This doesn’t look like an email address, please try again.
A printable PDF with key information about the bus model c9.
