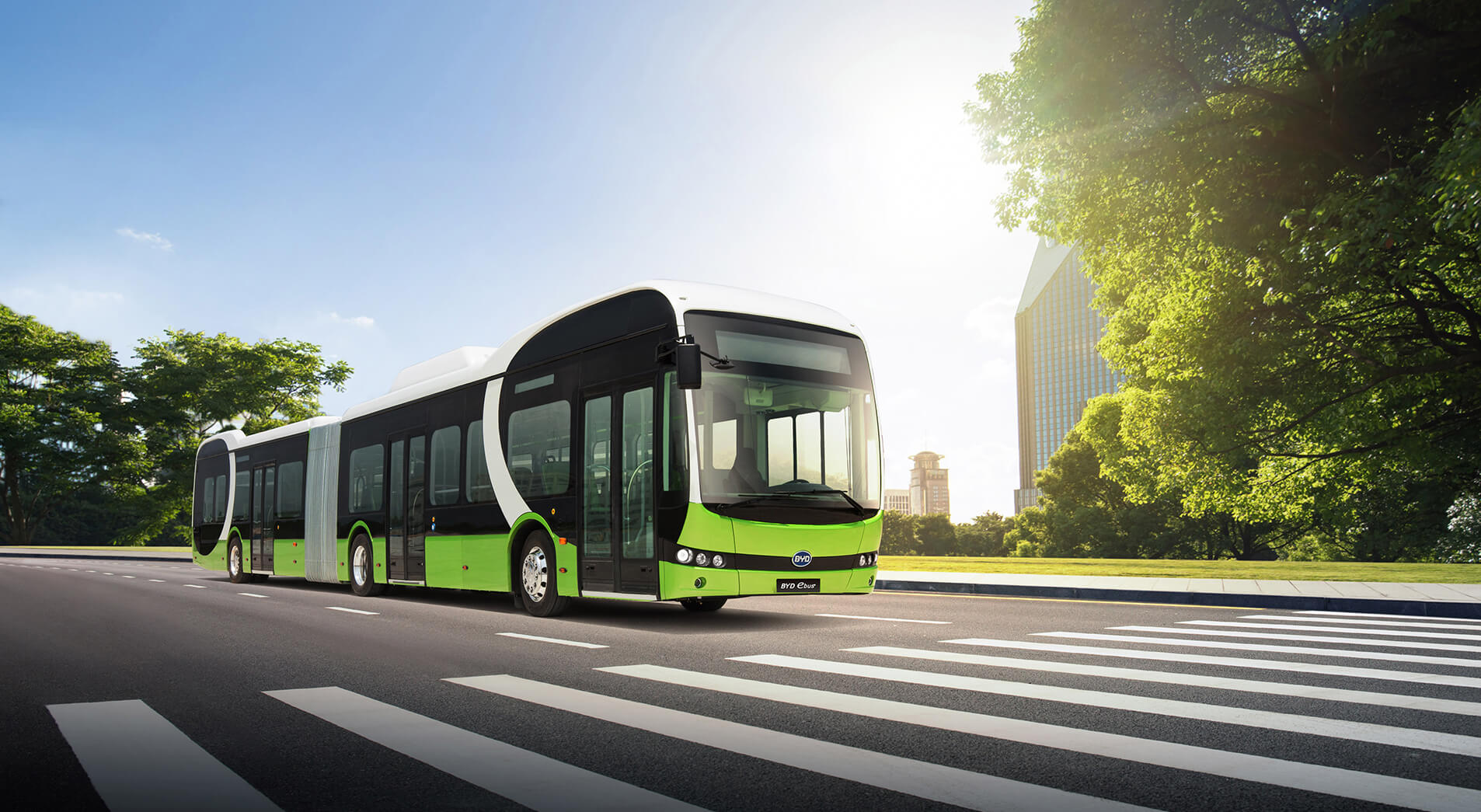

BYD 18m Articulated .
The articulated ebus has over 51 seats, allowing high-capacity transportation, while ensuring manoeuvrability. Besides AC- and DC overnight charging, opportunity charging is also available making it an efficient addition to any fleet.

Technical specifications.

Dimensions

L/W/H18,250 mm/2,550 mm/3,370 mm
Wheelbase5,250/6,700 mm
Turning circle24 m
Floor height370 mm
Boarding height325/340/340
Approach/Departure angle7/7 º
Tyres275/70 R22.5
Interior headroom2,450 mm
Clear door width1,200/1,200/1,200 mm
Gross Vehicle Weight (G.V.W.)28,500 kg
L/W/H 18,250/2,550/3,370 mm
Wheelbase 5,250/6,700 mm
Turning circle 24 m
Floor height 370 mm
Boarding height 325/340/340
Approach/Departure angle 7/7 º
Tyres 275/70 R22.5
Interior headroom 2,450 mm
Clear door width 1,200/1,200/1,200 mm
Gross Vehicle Weight (G.V.W.) 28,500 kg

Powertrain

Max. motor power150kW x 2
Max. climb gradient15%
Max. motor power 150kW x 2
Max. climb gradient 15%

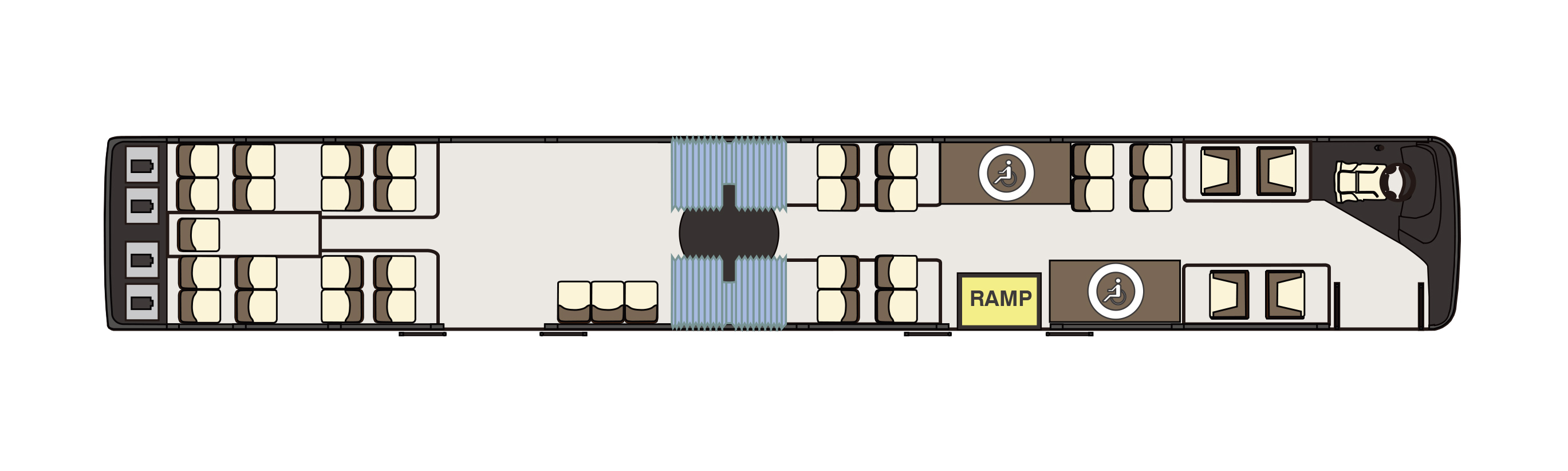

Layout

Dimensions

L/W/H18,250 mm/2,550 mm/3,370 mm
Wheelbase5,250/6,700 mm
Turning circle23.5 m
Floor height370 mm
Boarding height325/340/340/340
Approach/Departure angle7/7 º
Tyres275 /70 R22.5
Interior headroom2,450 mm
Clear door width1,200/1,200/1,200 mm
Gross Vehicle Weight (G.V.W.)28,500 kg
L/W/H 18,250/2,550/3,370 mm
Wheelbase 5,250/6,700 mm
Turning circle 23.5 m
Floor height 370 mm
Boarding height 325/340/340/340
Approach/Departure angle 7/7 º
Tyres 275/70 R22.5
Interior headroom 2,450 mm
Clear door width 1,200/1,200/1,200 mm
Gross Vehicle Weight (G.V.W.) 28,500 kg

Powertrain

Max. motor power150kW x 2
Max. climb gradient15%
Max. motor power 150kW x 2
Max. climb gradient 15%

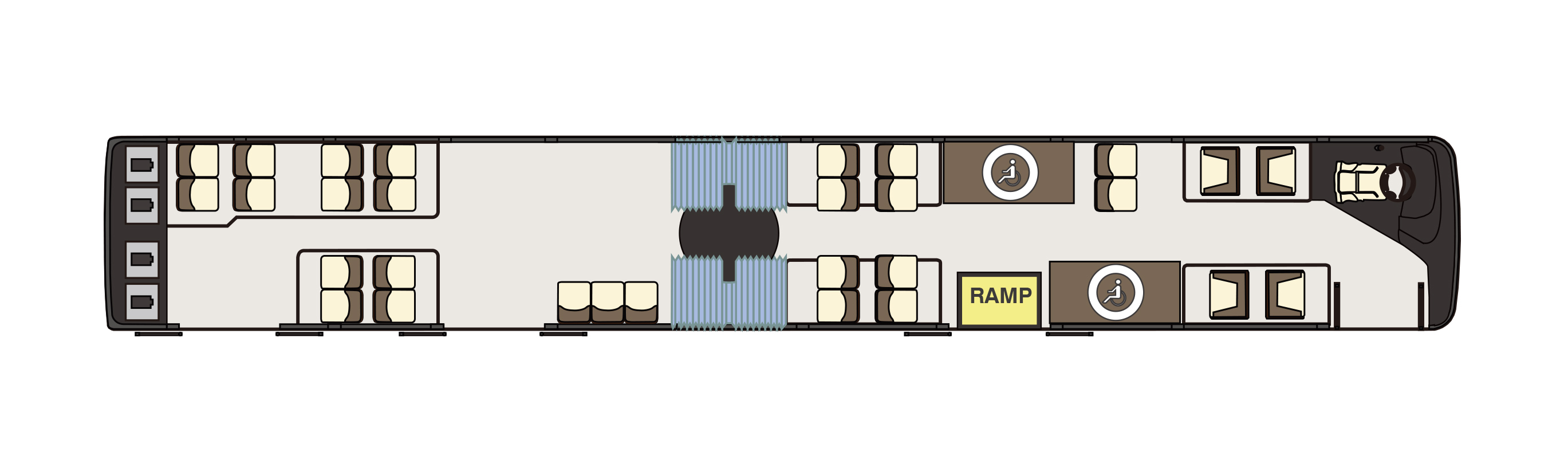

Layout
