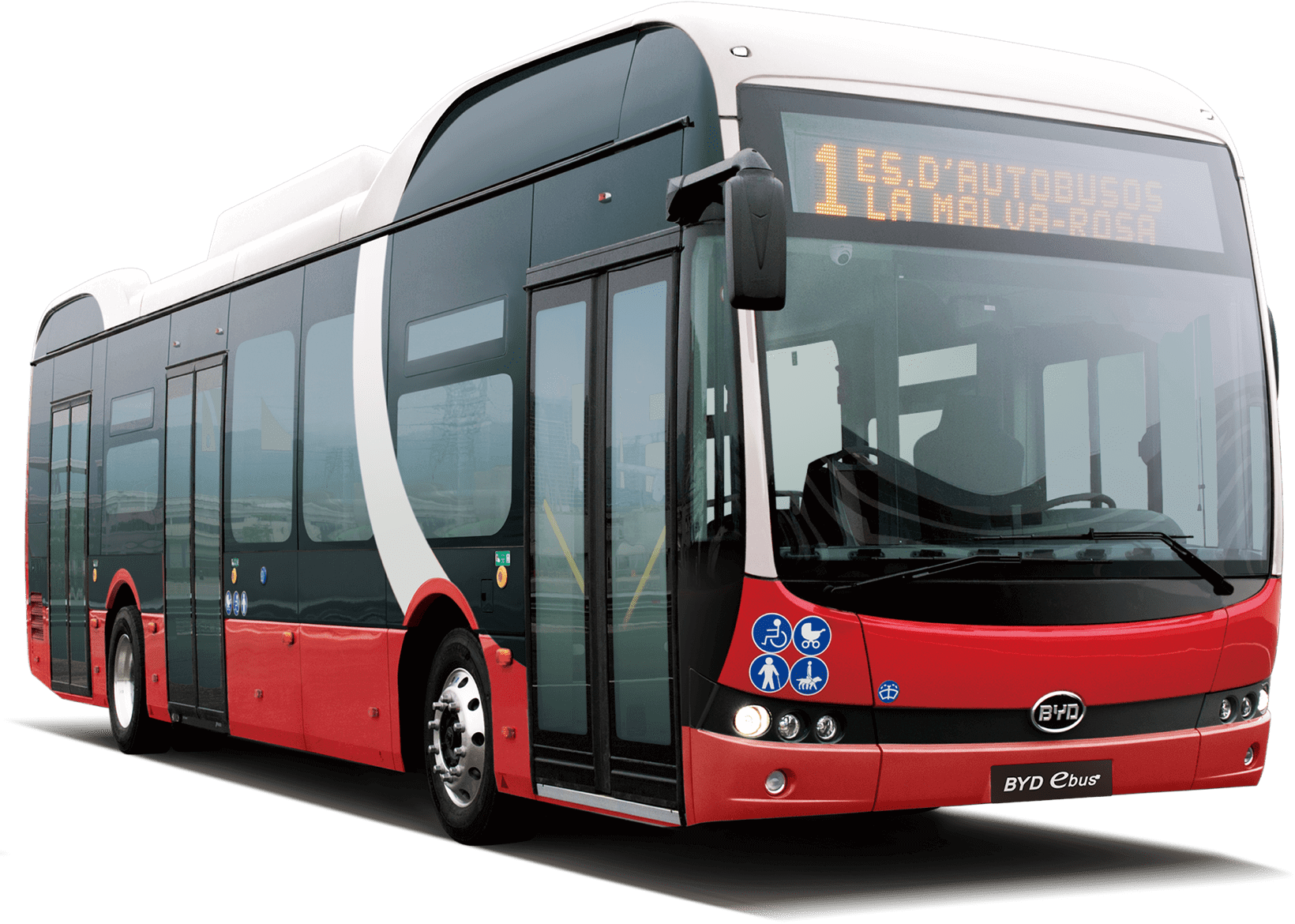

Bus 12m eBus.
The 12m ebus is the most popular ebus in our range. With thousands of its kind on roads worldwide, the bus has proven to be safe and reliable.

Technical specifications.

Dimensions

L/W/H12.200 mm/2550 mm/3.370 mm
Wheelbase5.900 mm
Turning circle24 m
Floor height370 mm
Boarding height325/340
Approach/Departure angle7/7 º
Tyres275/70 R 22.5
Interior headroom2.450 mm
Clear door width1.200/1.200 mm
Gross Vehicle Weight (G.V.W.)19.000 kg
L/W/H 12,200/2,550/3,370 mm
Wheelbase 5,900 mm
Turning circle 24 mm
Floor height 370 mm
Boarding height 325/340
Approach/Departure angle 7/7 º
Tyres 275/70R 22.5
Interior headroom 2,450 mm
Clear door width 1,200/1,200 mm
Gross Vehicle Weight (G.V.W.) 19,000 kg

Powertrain

Max. motor power150kW x 2
Max. climb gradient15%
Max. motor power 150kW x 2
Max. climb gradient 18%

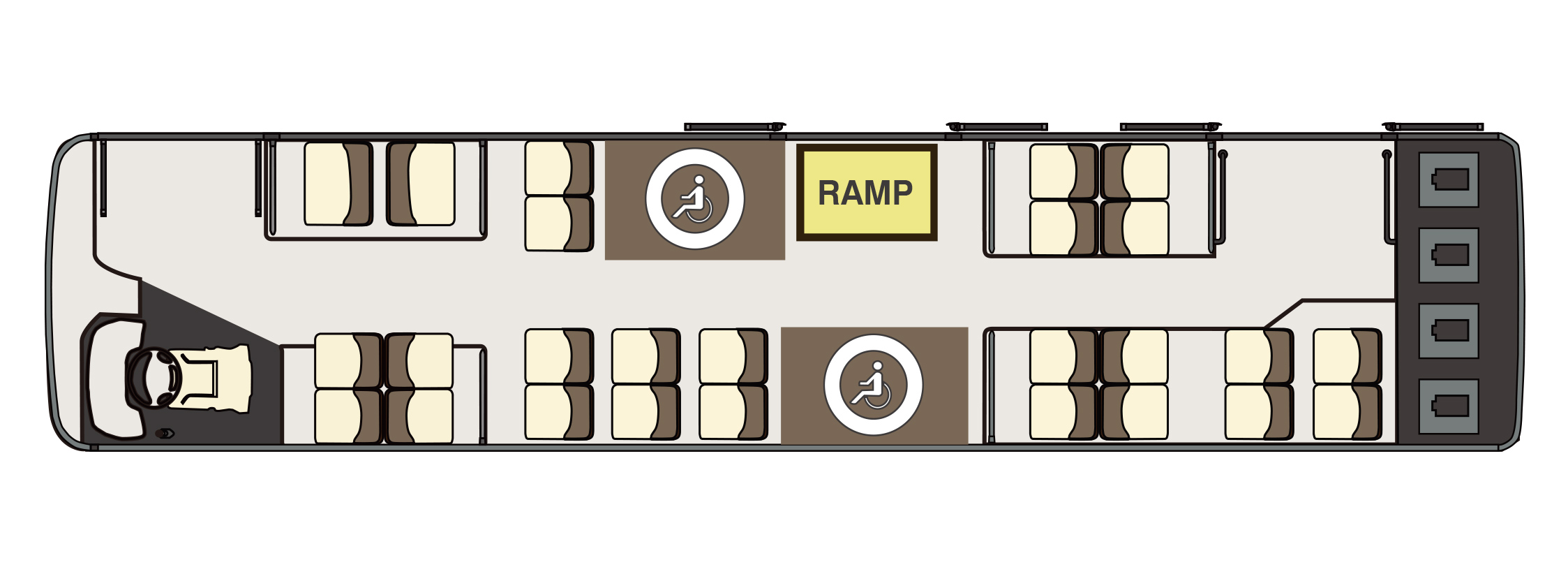

Layout

Dimensions

L/W/H12,200 mm/2,550 mm/3,370 mm
Wheelbase5,900 mm
Turning circle24 m
Floor height370 mm
Boarding height325/340/340
Approach/Departure angle7/7 º
Tyres275/70 R22.5
Interior headroom2,450 mm
Clear door width1,200/1,200 mm
Gross Vehicle Weight (G.V.W.)19,000 kg
L/W/H 12,200/2,550/3,370 mm
Wheelbase 5,900 mm
Turning circle 24 mm
Floor height 370 mm
Boarding height 325/340/340
Approach/Departure angle 7/7 º
Tyres 275/70 R22.5
Interior headroom 2,450 mm
Clear door width 1,200/1,200 mm
Gross Vehicle Weight (G.V.W.) 19,000 kg

Powertrain

Max. motor power150kW x 2
Max. climb gradient15%
Max. motor power 150kW x 2
Max. climb gradient 18%

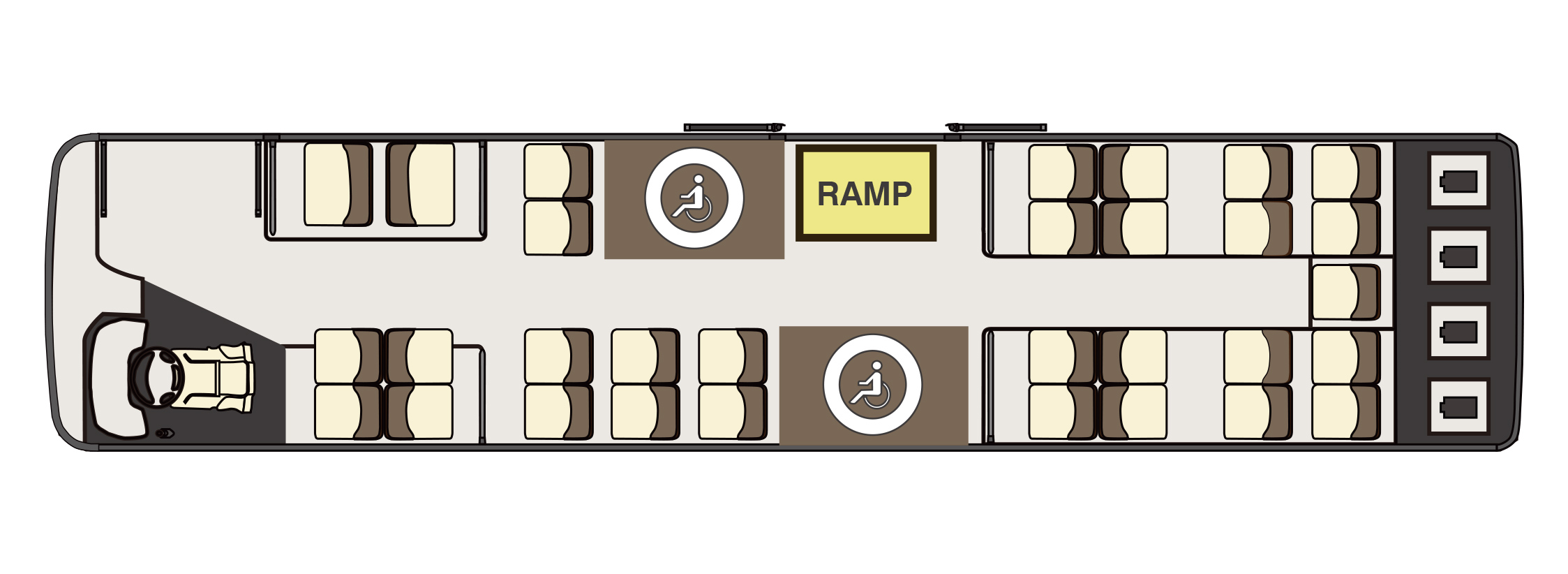

Layout

Download
our leaflet.

Fill in your email address and receive the leaflet directly in your mailbox.

E-mail address*
This doesn’t look like an email address, please try again.
A printable PDF with key information about the bus model 12.
